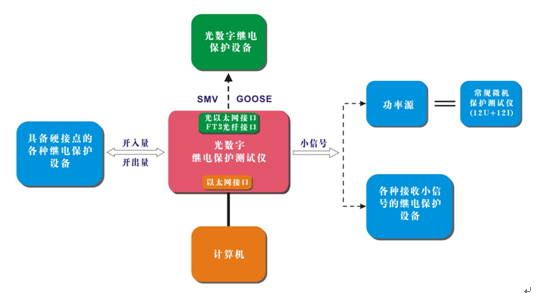

Embedded industrial computer +15 inch capacitive touch screen, support offline operation, small size, easy to carry;
Integrated optical digital test and small signal analog test function, and external current voltage amplifier;
12 independent optical fiber Ethernet interface, can also send and receive multiple compliance with IEC61850-9-1, IEC61850-9-2 standard sample value (SMV) and GOOSE packets, the sampling interval point output, to fully meet the new standard in network;
12 independent FT3 optical fiber interface (10 outputs, 2 inputs), can simultaneously output with IEC60044-7/8 (FT3) sampling value standard (SMV) message; support synchronous / asynchronous transmission mode, support multiple transmission rates; strictly according to the standard 50:50 encoding pulse duty cycle output, eliminate the error;
Support 24 independent SMV channel mapping (12U+12I), effectively solve the three winding transformer differential protection, auto switching device debugging problems; it can automatically detect the optical signal, realize the automatic configuration of the SMV and GOOSE information;
Virtual terminal test function;
A message with oscilloscope function, can receive and comply with IEC61850-9-1, IEC61850-9-2, IEC60044-7/8 analysis (FT3) sampling value standard (SMV) message, GOOSE message, self loop test device output; at the same time can receive the merging unit (MU) optical digital signal or other IED device, the real-time display of the waveform, amplitude, angle and frequency;
Voltage and current phase check function;
Has the function of packet recording and message analysis;
Supports multiple groups of GOOSE messages to receive or send;
SMV and GOOSE transceiver port can be configured, can be configured to export light transceiver, can be configured as independent transceiver;
A complete analytic model file protection (ICD, CID, SCD and other documents), to realize the selection, proportional coefficient, ASDU number, sampling rate, GOOSE information automatic configuration of current and voltage channels, simplify protection test, improve work efficiency;
SMV abnormal message test function, can simulate the lost frame, out of step, flying point, wrong order, quality exception, wrong value test, packet jitter, etc.;
GOOSE abnormal message test function, can simulate the lost frame, wrong sequence, abnormal heartbeat time, loss of step, etc.;
Optical power test;
With MMS communication function, can directly communicate with the protection device, read the protection of fixed value, sample values, protection reports and other information, as well as modify the protection of the fixed value, such as the operation of the control word;
Using MMS communication function, can realize the automatic test of digital protection;
Built in Wi-Fi function, can be achieved with the computer through the wireless network control tester, greatly facilitate on-site personnel operation;
With GPS, IRIG-B, IEEE1588 time synchronization function;
24 independent small analog signal output up to support compatible relay protection equipment to test various receiving small signal; or the connection of various brands of power source, test general protection and digital protection;
Eight pairs of open volume, six pairs of universal open, the amount of two pairs of quick out, GOOSE message, the protection of the complete closed-loop test;
The software testing function is rich, and it can be used to test the protection devices such as line protection, bus protection, transformer protection, generator transformer protection and so on;
Supports standard COMTRADE format waveform playback;
Software can be updated at any cost, and support all the current version of the Windows operating system, without changing the hardware, you can directly upgrade the latest version of the software.
Host
Power consumption: 50VA
Operating voltage: 85 ~ 264VAC (~ 440Hz) or 110 ~ 330VDC
Display and touch screen
LCD size: 15 inches
Touch screen: 15 inch capacitive touch
Ethernet communication interface
Ethernet interface: RJ45, 10/100Mbit, 2
Wireless function
Built in Wi-Fi module, wireless control tester
Synchronization interface
GPS synchronous interface: 1, receive antenna device (SMA head)
Optical B code interface: 2 (IN/OUT), interface type ST, connection fiber 62.5/125 m (multimode optical fiber)
IEEE1588 interface: 1 pair, interface type LC, connection fiber 62.5/125 m (multimode optical fiber)
Analog small signal voltage source
Method: standard 8 (4U+4I); high road 24 (12U+12I)
Amplitude output range: AC: 0 ~ 7.07 VAC; DC: -10 ~ +10 VDC
Accuracy: the error is less than 0.1%; resolution: 215 V; noise amplitude: less than 1mV
Frequency output range: 0 ~ 1000HZ; accuracy: error 0.001HZ; resolution: 0.001HZ
Phase output range: + 360 degrees; error: less than 0.1 degrees; resolution: 0.01 degrees
L fiber Ethernet interface
Transmission network: 100Base-FX (100M full duplex optical network)
Transmission port: 12 pairs of standard LC interface, can be configured for the 9-1/9-2 of the SMV transmitter or GOOSE transmitter receiver
Transmission medium: 50/125 m or 62.5/125 m orange multimode fiber, wavelength 1300nm,
Effective transmission distance 1 km
Transmission indication: LED dynamically indicates the transmission status
FT3 fiber interface
Transmission network: real time fast one-way optical fiber transmission network, the speed can be configured
Transmission interface: 12 standard ST interface, 10 FT3 SMV message transmission port, the FT3 port of the 2 SMV receiver
Transmission medium: 62.5/125 m orange multimode fiber, wavelength 850nm,
Effective transmission distance 1 km
Transmission indication: LED dynamically indicates the transmission status
SMV channel mapping
24 channel independent SMV channel mapping (12 path voltage +12 current)
Switch input
Quantity: 8 pairs;
Features: can be connected to the empty node and with potential contacts (0 ~ 250V);
Switch output
Quantity: 8 pairs; 6 pairs of general open space (air contact); 2 pairs of quick opening (reaction time <10 Mu s);
Weight and size
Machine weight: 11.8 kg;
Machine size: 474mmX210mmX300mm (H * W * D)
